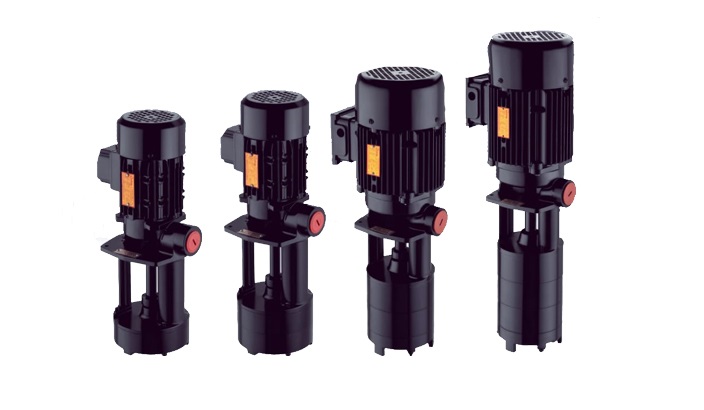

We are one of the leading organizations engaged in manufacturing, supplying, wholesaling and exporting high quality Single Stage Coolant Pumps. The offered range of products is manufactured using high quality material that is sourced from vendors of high repute after scouring the market. Moreover, we offer these pumps in various specifications.
| Stamping |
CRNO |
| Impeller |
Aluminium |
| Bowl |
Cast Iron |
| Shaft |
Stainless Steel |
| Bearing Bush |
Gun Metal |
APPLICATION
- Water
- Cooling Emulsion
- Cooling / Cutting Oil
Pumping Temperature : 0-80° C
USED ON
- All CNC Machines, Lathes and Machining Centers.
- Most Suited for through tool cooling, deep hole drilling etc.
- Also suitable for Industrial Washing
COOLING MOTOR DETAIL DIMENSIONS
| TYPE |
NO. OF STAGE |
H1 |
H2 |
D |
L1 |
L2 |
E |
PCD |
POWER IN KG |
WEIGHT IN KG |
| JC-100/180 |
1 |
180 |
245 |
122 |
100 |
95 |
25 |
155 |
0.37 |
12 |
| JC-120/215 |
2 |
215 |
245 |
122 |
100 |
95 |
25 |
155 |
0.50 |
14 |
| JC-253/255 |
3 |
255 |
315 |
172 |
135 |
95 |
25 |
155 |
1.50 |
31 |
| JC-254/315 |
4 |
315 |
340 |
172 |
135 |
95 |
25 |
155 |
1.70 |
36 |
