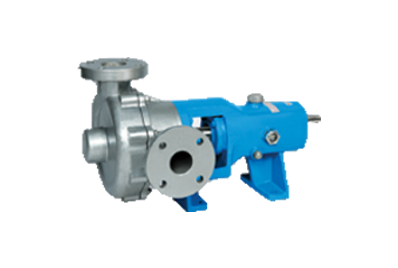

JFP
Operating Range
| Capaicty |
Up to 200 M3/hr |
| Head |
Up to 100 mtr |
| Discharge Size |
Dn 40 to 100 mm |
| Temperature |
Up to 140°C |
| Speed |
Up to 3500 rpm |
| Pressure |
Up to 10 kg/cm2 |
Applications
- Filter press feeding.
- ETP, STP & Waste Water treatment plant.
- EVA-operator, Scrubber application.
- Slurry transfer.
- Dyes & Intermediates, Steel Rolling mills.
- Pulp & Paper, Sugar, Salt, Starch industries.
- Zink & Copper plant.
- Ceramic, General industrial services etc.....
Materials
- SS-316, SS-316 L, SS-304, SS-304L
- Duplex stainless steel
- Super duplex stainless steel
- Cast bronze, cast steel, cast Iron
- Hastalloy - B & C, Alloy-20 etc.....
Features
- Single stage semi open impeller.
- Special design for filter press application.
- Reduce gland leakage.
- Heavy duty shaft, sleeve & bearings.
- Noise & maintenance free.
- Long life due to replaceable wearing parts.
- High efficiency low power consumption.
- Grease / oil lubricant bearings.
- Only positive (+V) suction head.
- Suitable with V-belt drive or direct coupled with a motor.
